On trails and roads undaunted
Pilen Grus Gravel Bike
Pilen Grus is a well-equipped gravel bike that combines performance and comfort. It features a Shimano GRX drivetrain, Tange Seiki TG36J27 Technoglide headset, Rival rims, Panaracer GravelKing tires, and Shimano GRX hydraulic disc brakes. Designed for gravel and rough roads, paved roads, trails, and paths, it can handle all conditions.
Pilen Grus Gravel Bike

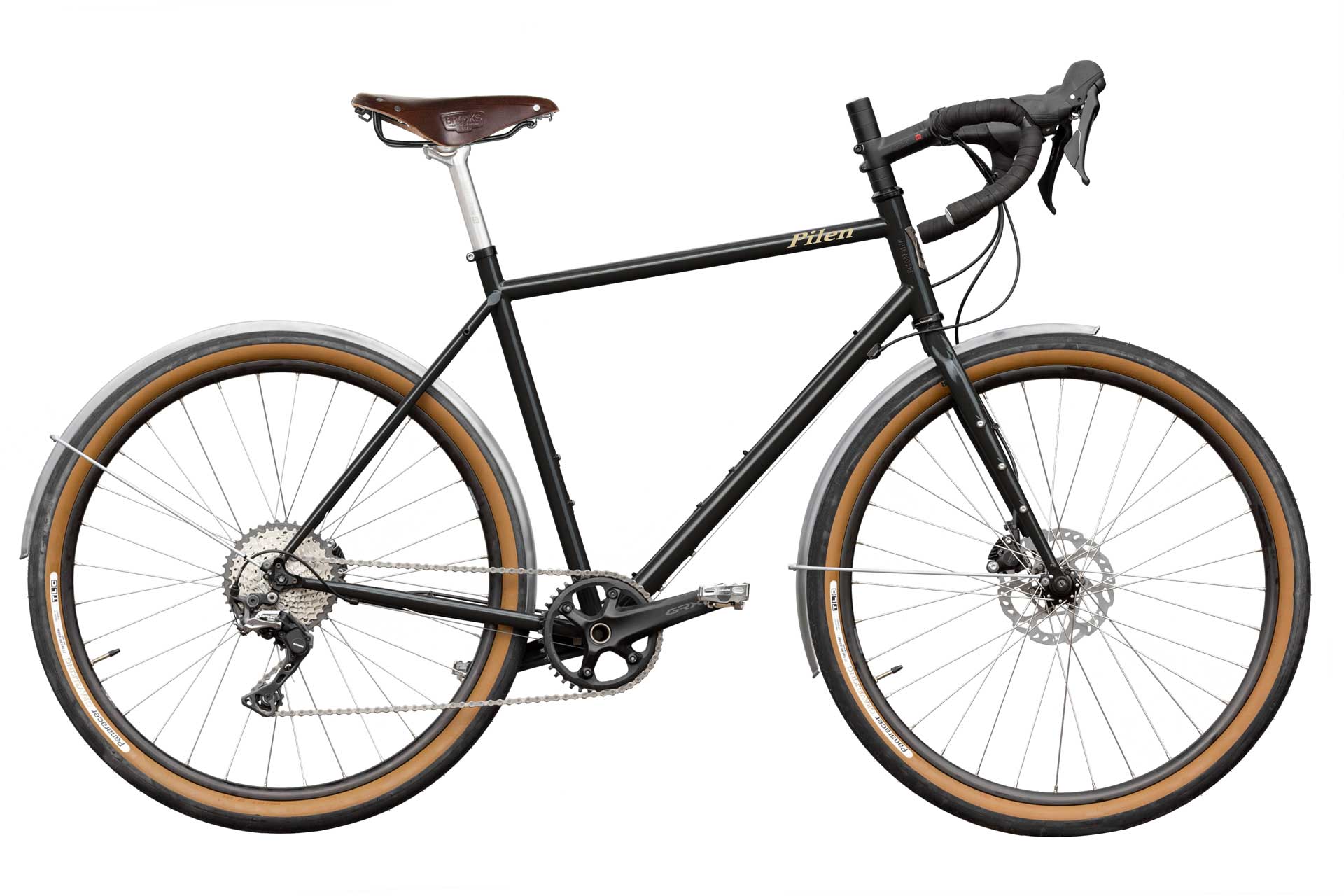

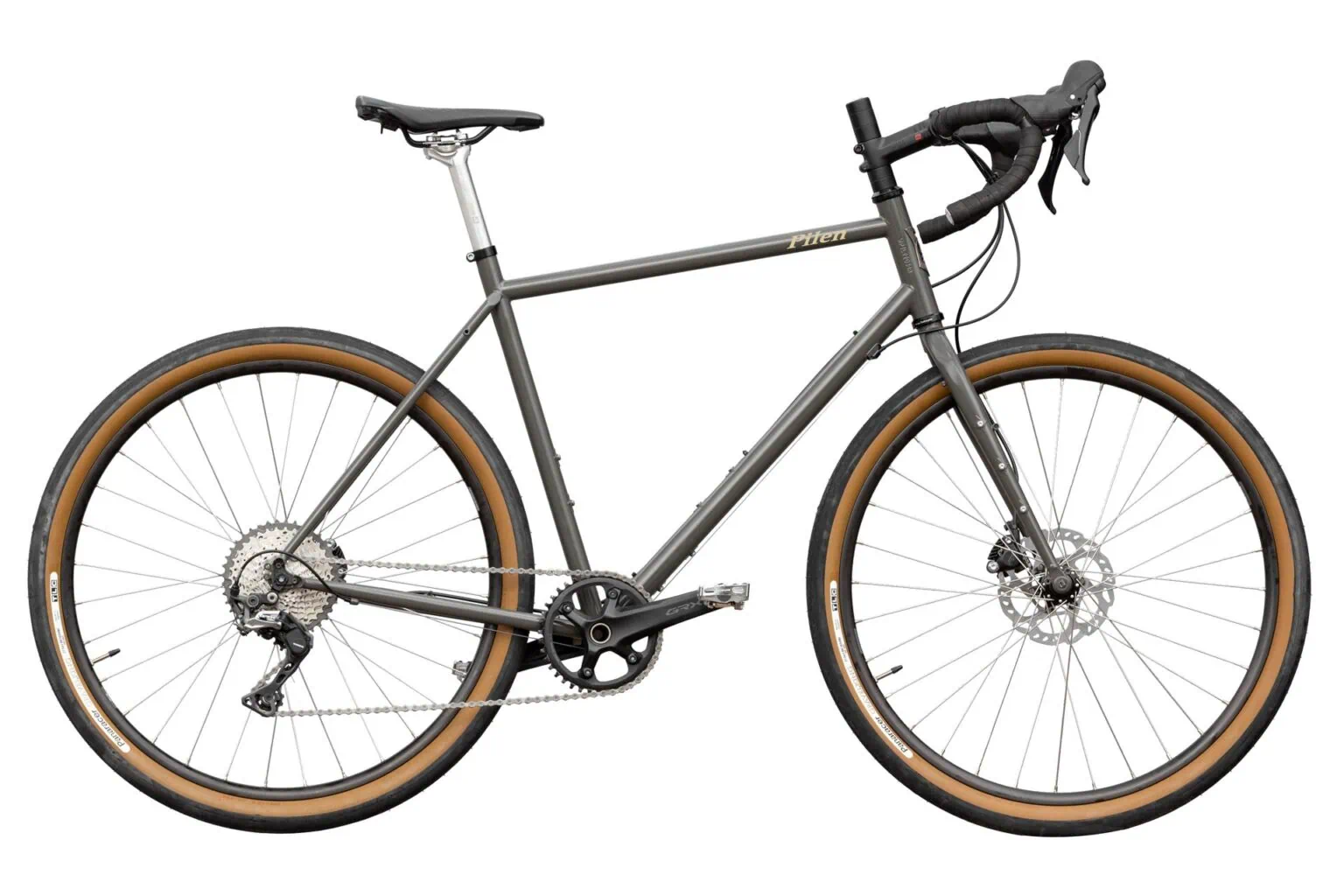

Pilen Grus (“Grus” is Swedish for gravel) is a well-equipped gravel bike offering both performance and comfort. The level of equipment includes Shimano GRX components, Tange Seiki TG36J27 Technoglide headset, Rival rims, Panaracer GravelKing tyres, and Shimano GRX hydraulic disc brakes. Pilen Grus is designed for riding on gravel and rough roads, paved roads, trails, or paths, uphill and downhill, in all weather conditions. Like other gravel bikes, Pilen has drop handlebars and a forward-leaning riding position similar to road racers.
The frame features triple-butted 0.7, 0.4, 0.3, 0.7 mm and double-butted 0.7, 0.4, 0.7 mm tubes in chromoly steel SAE 4130, with brazed mounts and details, and triple mounts for water bottles. The Tange Seiki TG36J27 Technoglide headset, made of lightweight and durable aluminium 6061-T6, provides smooth and precise steering. The frame is also prepared for mudguards, making the Pilen Grus a good option for bikepacking.
The drivetrain consists of the SHIMANO GRX FC-RX600 Grus crankset, specifically designed for riding on gravel and rough roads combined with smooth asphalt and winding paths. The 1×11 gears and 40T chainring provide a good balance between weight and efficiency. The integrated crank arm and bottom bracket offer increased rigidity and efficient power transfer. Precision bearings and easy installation make maintenance straightforward.
Pilen Grus gives you the confidence to master varying terrains thanks to Panaracer GravelKing 27.5 x 1.90, Ryde Rival rims, and extra-strong Sapim Force 14g double-butted spokes. This combination offers good grip, shock absorption, flexibility, and durability.
For braking and speed control, Shimano GRX hydraulic disc brakes are responsible. They offer powerful, easily modulated braking performance with a low risk of overheating in all conditions. Featuring the innovative One Way Bleeding system, these hydraulic brakes are easy to maintain, giving you more time for cycling.
Pilen Grus has a unicrown fork in chromoly steel, ready for lowriders and mudguards, and features a thru-axle. The saddle is a Selle Montegrappa Menator, providing good comfort even on long rides. With Shimano RX-600 11-speed shifters and a Deore XT-M8000 11-40t cassette, you get smooth gear transitions suited for gravel riding on varied terrains.
En välutrustad cykel hardcore gravel eller tjusig glidare – du väljer.
Pilen Grus finns med normal leveranstid i Svart RAL 9005 och Grå RAL 7022. Exklusivt val av färger kostar från 1200 kr.
Pilen Grus har en lätt och stark ram med TIG-svetsade dubbel- och trippelreducerad rör och med tre fästen för vattenflaskor.
Ringklocka är ett lagkrav. För färd i mörker behövs belysning och reflexer, fram, bak och åt sidorna.
Pilens cyklar är byggda för nordiskt klimat och har extra bra rostskydd. Visa den tekniska specifikationen.
Cyklarna byggs i vår fabrik i Gamleby med både svenska och internationella komponenter. Se film.
Pilen Grus kan utrustas med tillval.
Frame SAE 4130 three sizes: Small, Medium, and Large
Fork chromoly SAE 4130
Headset Tange Seiki TG36J27 Technoglide black or silver
Shimano GRX 11-speed
Front hub Shimano with dynamo hub available as an option
Shimano GRX hydraulic disc brakes
Bottom bracket Shimano BSA 68
Weight 11.5 kg (without pedals)
Rims Ryde Rival 584-19
Tyres Panaracer GravelKing TLC Folding 27.5 x 1.90
Spokes Sapim Force 14g double-butted
Saddle Selle Montegrappa Menador
Optional stainless steel mudguards
Handlebar Ergotec 420 / 490 or 440 / 510 mm
Stem Ergotec 50, 80, or 100 mm

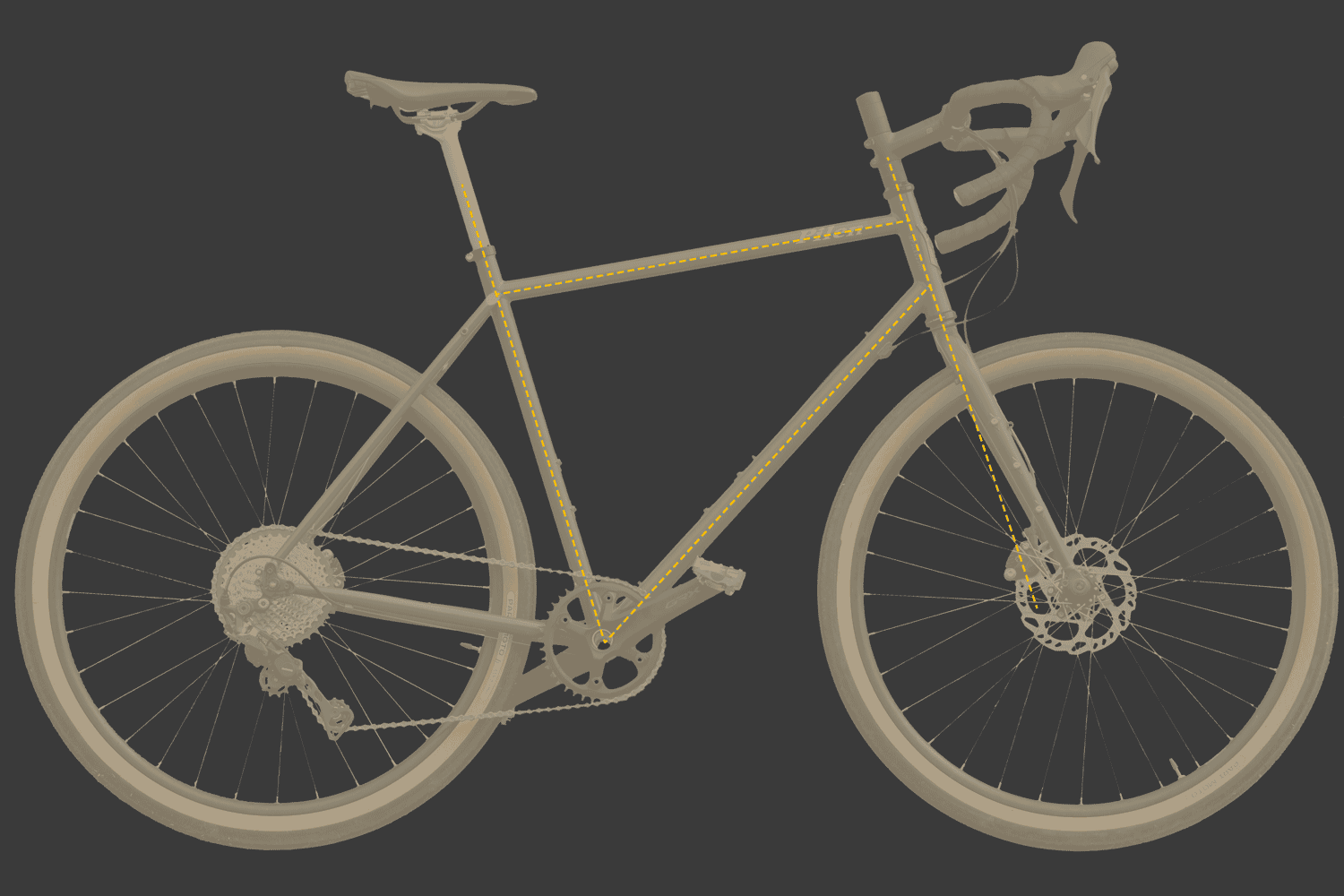

The frame is designed from the ground up to offer a nimble and responsive ride, engaging a rider over technical sections. This responsiveness has been achieved through the use of a smaller, lighter 650b wheel, and a steeper head tube angle (6). Over faster rolling terrain, the longer top tube length (1) provides superior stability at higher speed. This also allows riders to run shorter stems to achieve a desired fit, further improving steering feel and agility. As traditional for a gravel bike, to deal with more challenging terrain, a higher stack height (4) is used. This allows a more relaxed, upright position, to be favored, improving control and weight distribution off road, whilst allowing for unbeatable comfort on paved sections.
Ramen är designad från grunden för att erbjuda en lätthanterlig och responsiv upplevelse. Det har uppnåtts genom en mindre (och lättare) dimension av hjul, 27,5 tum | 650b, och brantare kronrörsvinkel (6). Vid högre hastigheterer ger det relativt långa övre ramröret (1) ökad stabilitet. Det gör det också möjligt för cyklister att använda kortare styrstammar för att uppnå önskad körställning, vilket ytterligare förbättrar styrkänsla och smidighet. Pilen Grus har också som andra gravelcyklar en högre stackhöjd (4) för att kunna hantera mer utmanande terräng. Även detta möjliggör en mer avslappnad, upprätt position, vilket förbättrar kontroll och viktfördelning off-road, samtidigt som det ger oslagbar komfort på asfalterade sträckor.
| Component | Value | Marker |
|---|---|---|

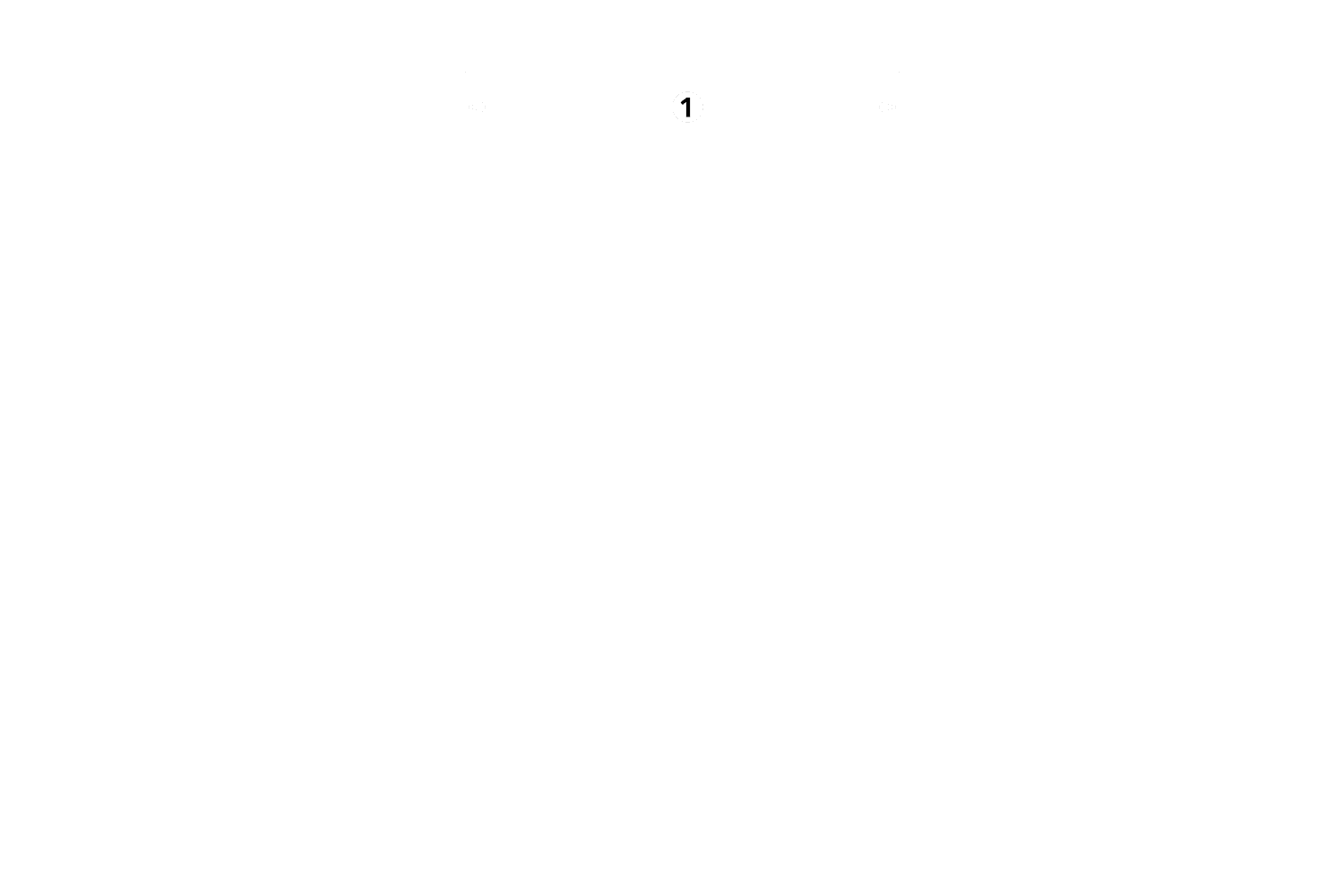

| 527 mm | 527 mm | 1 |
| 550 mm | 550 mm | 1 |
| 572 mm | 572 mm | 1 |

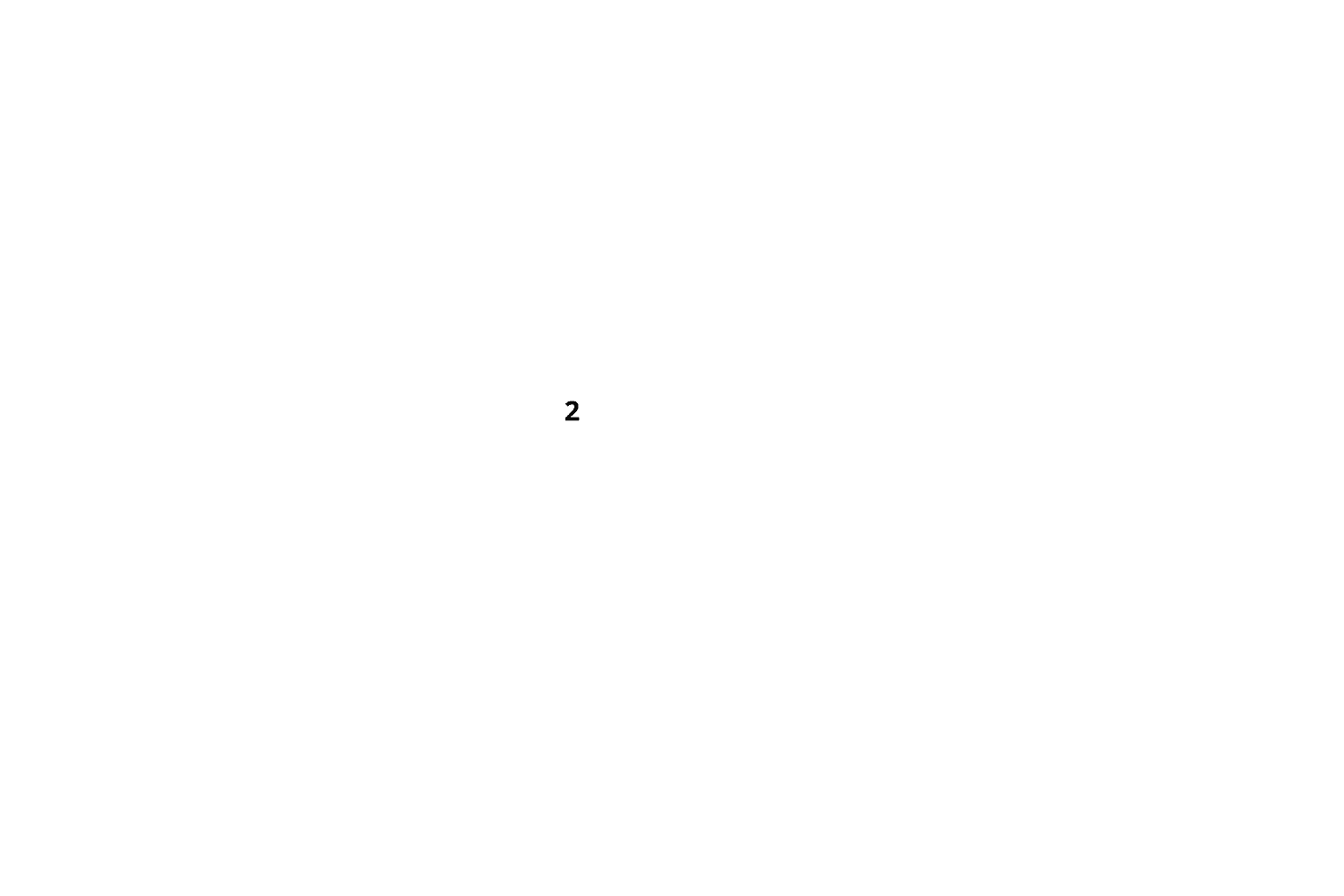

| 510 mm | 510 mm | 2 |
| 540 mm | 540 mm | 2 |
| 570 mm | 570 mm | 2 |
| 375 mm | 375 mm | 3 |
| 390 mm | 390 mm | 3 |
| 405 mm | 405 mm | 3 |
| 562 mm | 562 mm | 4 |
| 587 mm | 587 mm | 4 |
| 611 mm | 611 mm | 4 |
| 140 mm | 140 mm | 5 |
| 165 mm | 165 mm | 5 |
| 190 mm | 190 mm | 5 |
| 71.5° | 71.5° | 6 |
| 72° | 72° | 6 |
| 72° | 72° | 6 |
| 73° | 73° | 7 |
| 73° | 73° | 7 |
| 73° | 73° | 7 |
| 435 mm | 435 mm | 8 |
| 435 mm | 435 mm | 8 |
| 435 mm | 435 mm | 8 |
| 70 mm | 70 mm | 9 |
| 70 mm | 70 mm | 9 |
| 70 mm | 70 mm | 9 |
| 1032 mm | 1032 mm | 10 |
| 1051 mm | 1051 mm | 10 |
| 1073 mm | 1073 mm | 10 |
| 60 mm | 60 mm | 11 |
| 60 mm | 60 mm | 11 |
| 60 mm | 60 mm | 11 |
| 740 mm | 740 mm | 12 |
| 770 mm | 770 mm | 12 |
| 800 mm | 800 mm | 12 |
Bike Frame Size Calculator
Recommended Frame Size:
(150-165 cm, 70-74 cm)
(166-180 cm, 75-77 cm)
(181-195 cm, 78-80 cm)
(150-165 cm, 75-77 cm)
(150-165 cm, <70 or >77 cm)
(166-180 cm, <75 cm)
(166-180 cm, 78-80 cm)
(166-180 cm, >80 cm)
(181-195 cm, <78 cm)
Find Your Bike Size - Calculator 1
Recommended Frame Size:
| Components | Description |
|---|---|
| Frame | Chromoly SAE 4130. Seat tube diameter 29.8 / 28.6 mm triple butted 1.2 - 0.6 - 0.9 mm. Top tube diameter 28.6 mm and down tube diameter 34.9 mm, both double butted 0.7 - 0.4 - 0.7 mm. Brazed-on details. Dual bottle mounts. Standard colors: Black RAL 9005, Grey RAL 7022. |
| Headset | Tange Seiki TG36J27 Technoglide. Black or silver. Size: 1-1/8". Model name: TG36J27. Stack height: 25.3 mm (Top 13.8 mm / Bottom 11.5 mm). Weight: 88 g. Type: Threadless (Ahead). Material: Aluminium 6061-T6. |
| Crankset | SHIMANO GRX FC-RX600 Gravel Crankset 1x11-speed 40t. Shimano FC-RX600 Crank 170 mm. 2-piece crank. Integrated crank arm and bottom bracket. Increased rigidity with less weight. Wider bearing positioning. Rigidity is enhanced and pedaling force is efficiently transmitted. Precision bearings. Low maintenance and simplified installation. |
| Tires | GravelKing Slick TLC Folding. Anti-Flat Casing and AX-a Advanced Extra Alpha Cord technology mean you get a lightweight tire with fantastic puncture protection, while the ZSG Natural Compound provides excellent traction even on the slickest surfaces. Perfect for rides that go from the cycle track, to the road, to paths. |
| Rims | Ryde Rival 584-19 with eyelets. Black powder coat. Aluminium double wall. Max axle load 65 kg. |
| Rear Derailleur | RD-RX812 11-speed. SHIMANO GRX. With Shimano Shadow RD+. Average weight: 267 grams. With an integrated chain stabilizer mechanism, the SHIMANO GRX rear derailleur provides a quieter experience and shifting security and precision on mixed terrain. For rides on smooth surfaces, the derailleur features an ON/OFF switch for the chain tensioner. |
| Brake Calipers | SHIMANO GRX R-RX400-F Hydraulic Disc Brake Caliper 160 mm Flat Mount. With One Way Bleeding. With a low-profile design for Flat Mount, the SHIMANO GRX BR-RX400 hydraulic disc brakes provide better control for mixed terrain riding. ONE WAY BLEEDING was developed for quick and easy prevention of air in the hydraulic system. The oil route through the system has been streamlined to prevent air bubbles from being trapped. |
| Front Hub | SHIMANO HB-RS470 Disc Brake Front Hub 100x12 mm E-THRU. High quality sealing cup and cone bearing. Internal grease sleeve. |
| Front hub alternative | SHIMANO ALFINE DH-UR705-3D Hub Dynamo for Disc Brake. Center Lock. 3.0W.- E-THRU Axle. |
| Rear Hub | SHIMANO FH-RS470 center lock 12 mm thru axle. SHIMANO Disc Brake E-THRU Axle Rear freehub 10/11-speed. High-quality sealing cup and cone bearing. Internal grease sleeve. |
| Spokes | Sapim Force 14g double butted. Sapim double-butted spokes have two major benefits: less weight and more strength! The SCFT-system (Sapim Cold Forging Technology) stretches the spoke while retaining the material's linear molecular structure, increasing the spoke's strength in the middle by 22% - 48% depending on the model. The reduced diameter section provides more elasticity and longer life. |
| Shifters | SHIMANO GRX Hydraulic Disc Brake Dual control lever - 1x11-speed. SHIMANO GRX BL-RX600-L shifters provide greater rider control for mixed terrain riding thanks to SHIMANO's category-leading hydraulic disc brakes. |
| Bottom Bracket | Shimano BSA 68 Threaded. |
| Fork | Unicrown fork head Chromoly SAE 4130 tubes with brazed-on mounts for lowriders and mudguards. |
| Seatpost | 27.2 mm. |
| Mudguards | Ready for mudguards. |
| Saddle | Selle Montegrappa Menador. Steel rails. Cover Flex PU |
| Pedals | Without pedals. Crankset pedal mount 9/16". |
| Handlebar | Ergotec Randonneur aluminum width 420 / 490 or 440 / 510 mm. Flare 16 degrees. |
| Stem | 50 mm Ergotec Piranha 650B 31.8 mm. 80 or 100 mm Ergotec Piranha 2 31.8 mm. |
| Colour | Comes standard in Grey RAL 7022 or Black RAL 9005. Other colors on request. |
| Stainless Steel Mudguards | 780 SEK |
| Dynamo Hub | SHIMANO ALFINE DH-UR705-3D - Dynamo Hub - Disc Brake - CENTER LOCK - 3.0W - E-THRU Axle. The dynamo hub uses a new internal unit construction that is lighter and also reduces dynamo drag while producing 3 watts. It is designed for 26 to 28-inch CENTER LOCK wheels. Black. |
| Frontlight Briq Dynamo | B&M LUMOTEC Briq-S Senso Plus 60 Lux. Extensive light field. Daylight. Near light. Automatic sensor. Standlight. ON/OFF switch. Clip-on reflector. Unparalleled price/performance ratio. Very wide and homogeneous light field. |
| Frontlight IQ-X | B&M LUMOTEC IQ-X 100 lx. 100 Lux. Extensive light field. Daylight. Near light. Automatic sensor. Standlight. ON/OFF switch. |
| Weight | 11.5 kg (without pedals). |
Du väljer och vi bygger!
Vi har sjösatt designmodulen för Pilen GT herr. Du väljer färger på cykelns delar, kan ladda ned en bild på din cykeldesign, dela en länk till din design och få en prisberäkning utifrån dina val.
Specifikation, tillval och priser
Vad skiljer en Pilen GT från konkurrenterna?
- Exklusiv ram med kaxiga vinklar byggd med rör i krom-molybdenstål kvalitet 4130. En dyrare och snärtigare stålkvalitet som efter svetsning behandlas med värme för att metallen ska återfå sin starkaste kristallina struktur och svetsfogarna bli ett med ramen. Ramen är lätt, stark och mer spänstig med förhöjd körupplevelse. Testkör och upplev skillnaden. Ramen är svetsad med TIG-svetsning. En långsam svår svetsteknik som ger starka tunna fogar. Ramdetaljerna är hårdlödda med mässingslod. Riktigt hantverk är vackert och ger bäst köregenskaper.
- Ramens topprör och undre ramrör är av reducerad modell. Det betyder att godstjockleken är tunnare mitt på röret för att spara vikt 0,9–0,6–0,9 mm.
- Elegant gaffel med gjuten stålkrona. Gaffelben i krom-molybdenstål 4130. Gaffelbenen är hårdlödda till den gjutna gaffelkronan med mässingslod. Riktningsstabil och följsam.
- Marknadens kanske bästa hjul med dubbelbottnade fälgar, riktade ekerhål, öljetter och kraftiga ekrar i rostfritt stål. I bakhjulet är ekrarna dessutom av reducerad modell.
- Vevlagret är ett underhållsfritt kassettvevlager av märket Tange modell LN-7922 med kapslade kvalitetskullager, smidd axel i krom-molybdenstål och aluminiumhylsa.
- Stänkskärmar, skärmstag och alla muttrar och skruvar är av rostfritt stål 18/8. Sadelstolpe och styrstam i aluminium.
- Sadel i konstläder i färgen svart, brun eller honung eller som tillval en riktig lädersadel Brooks B17 i färgen svart, brun eller honung.
Vilken standardutrustning har Pilen GT?
- Sadel konstläder Montegrappa Canard i svart, brun eller honung.
- Tillval är sadel Brooks B17 i äkta läder svart, brun eller honung.
- Stänkskärmar i rostfritt stål. Välj mellan svarta pulverlackerade eller handpolerade stålrena.
- Marknadens kanske bästa hjul med dubbelbottnade fälgar, riktade ekerhål, öljetter och ekrar i rostfritt stål. Välj fritt mellan svartanodiserade eller silveranodiserade fälgar.
- Roterande kedjeskydd som täcker kedjehjulet fram (men inte kedjan till bakhjulet).
- Däck svarta Schwalbe Marathon Racer 622-35 med reflexsidor.
- Handtag välj fritt mellan Herrman Zeglo kork eller svarta gummihandtag.
- Klocka i aluminium.
- Sidostöd Atran Moove i aluminium.
- Godkänt lås från Abus säkerhetsklass 9.
- Godkänd belysning.
- Klassiskt dubbelböjt Roadster-styre.
- Navgenerator inbyggt i framnavet som driver framlampan. Alternativet batterilampa fram och nav utan navgenerator (obs prisskillnad).
Färgval för Pilens cyklar
Custom Colours, Your Choice – We Build!
- All frame colours.
- All colours for mudguards plus Matte Polished Stainless Steel.
- All colours for chain guards plus Matte Polished Stainless Steel.
- All colours for the rear carrier or no carrier (Lyx).
- Various colours for faux leather saddles and various colours for leather saddles.
- Black or silver-coloured rims.
- Tyres in black, brown, or cream.
- Handles in black or cork.
- Bells from Crane Bells Japan.
- Baskets and front carriers.
- You can download an image of your design. The image is saved to your computer or mobile phone. You can download as many design images as you like.
- You can copy a web link that, when opened in a browser, directs to the configurator and recreates the selections you made. You can create as many web links as you like.
For Pilen Lyx
You choose the colour of the frame and fork, the colour of the mudguards, the colour of the rear carrier, and the colour of the chain guard. If you want the same colour for all parts, previously called single colour, you can have that. If you want the frame and fork in one colour, the mudguards in a second colour, the rear carrier in a third colour, and the chain guard in a fourth colour, you can have that too. Black mudguards, a black rear carrier, and a black chain guard are still available at no extra cost. The custom choices for mudguards, rear carriers, and chain guards have an additional cost of 150 SEK per choice, totaling 450 SEK if you want to customize the appearance of all three. You choose – we build.
For Pilen GT and Pilen GTV
The Pilen GT comes standard with a rotating chain guard mounted on the front chainring. You can choose to have the more protective chain guard from the Pilen Lyx installed—in either a colour of your choice or in matte polished stainless steel—for an additional 300 SEK. The wire-model rear carrier is never painted. You can opt to remove the rear carrier if, for example, you plan to install a child seat or prefer a more minimalist, sporty look for the bike. You choose – we build.
Please note that the Pilen GTV does not have a bicycle configurator. This is because the Pilen GT is essentially identical to the Pilen GTV, with the difference being that the GTV has 11 gears and hydraulic disc brakes.
For Pilen EL1
"And you can have it your way..."
The meaning of Pilen’s slogan “You can have it your way” applies to options and paintwork. Read about the colours available for the bikes. As far as is practically, logistically, and cost-effectively possible, we want to offer the creation of unique bikes.
The table further down the page shows which Standard Colours the models are available in with a normal delivery time of 1-2 weeks, i.e. bikes we can build with painted parts we have in stock. It also shows which colours are Plus Colours with longer delivery times (but no additional cost).
The model is available in that Standard Colour with a normal delivery time of 2-4 weeks.
NOTE: We are currently revising our colour selection process. Plus Colour may affect the delivery time to the end customer. Plus Colour does not affect the price to the end customer.
The model cannot be delivered at the moment.
| Colours | Lyx Ladies | Lyx Gents | GT Ladies | GT Gents | GTV Ladies | GTV Gents | EL1 |
|---|---|---|---|---|---|---|---|
| Black RAL 9005» Show all bikes with this color | T | T | T | T | T | T | PF |
| Red RAL 3004 » Show all bikes with this color | T | PF | PF | PF | T | T | PF |
| Green RAL 6005 » Show all bikes with this color | T | T | T | T | T | T | PF |
| Blue RAL 5001 » Show all bikes with this color | T | T | PF | PF | PF | PF | PF |
| Grey RAL 7022 » Show all bikes with this color | PF | PF | PF | PF | PF | PF | PF |
| Creme RAL 1015 » Show all bikes with this color | T | T | PF | PF | T | T | PF |
| Pink RAL 3015 | T | ||||||
| Light Green RAL 6021 » Show all bikes with this color | T | PF | PF | PF | PF | PF | PF |
| Light Blue RAL5024 » Show all bikes with this color | PF | PF | PF | PF | PF | PF | PF |
| Duragreen » Show all bikes with this color | T | T | T | T | T | T | T |
| Durablue » Show all bikes with this color | T | T | T | T | T | T | T |
Pilen can also paint one or more bikes in any desired colour – we call this Exclusive Colour – if we receive the name and RAL colour of the paint. This is done, for example, when Pilen produces Company Bikes where the customer wants their own profile colour. Painting in Exclusive Colours incurs an additional cost which is quoted to the customer upon request – after we have checked the availability of the colour with East Coast Industrial Coatings in Västervik, Sweden, and possibly with Axalta. The cost is always quoted and includes a fixed setup cost and a cost per bike. Note: the customer must specify the RAL colour for the Exclusive Colour. An RGB code or web colour code is not sufficient.
The normal colour scheme for Lyx means that the frame and fork are painted in the chosen colour. Chainguard, mudguards, and carrier are painted in Black RAL 9005.
The normal colour scheme for GT and GTV means that the frame and fork are painted in the chosen colour. The mudguards are matte-polished bare stainless steel. The rotating chainguard and wire model carrier are not painted.
The normal colour scheme for EL1 means that the frame, carrier, and fork are painted in the chosen colour. Chainguard, mudguards, and carrier are painted in Black RAL 9005.
Exempel på Standardfärger, Plusfärger, och Exklusivfärger
Se exempel på cyklar lackerade i Standardfärger, Plusfärger och Exklusivfärger där företags profilfärger samt använts.
Priser Pilen GT
Pilen GT | Sadel | Rek. pris |
|---|---|---|
| Magnus 2024-04-25 | ||
| GT 1, fotbroms bak, navdynamo och rullbroms fram | Canard konstläder | 8845 |
| GT 3, fotbroms bak, navdynamo och rullbroms fram | Canard konstläder | 9375 |
| GT 7, fotbroms bak, navdynamo och rullbroms fram | Canard konstläder | 10255 |
| GT 7, rullbroms bak, navdynamo och rullbroms fram | Canard konstläder | 10565 |
| GT 1, fotbroms bak, navdynamo pch rullbroms fram | Brooks B17 läder | 9945 |
| GT 3, fotbroms bak, navdynamo och rullbroms fram | Brooks B17 läder | 10475 |
| GT 7, fotbroms bak, navdynamo och rullbroms fram | Brooks B17 läder | 11355 |
| GT 7, rullbroms bak, navdynamo och rullbroms fram | Brooks B17 läder | 11665 |
| Med endast rullbroms fram | -400 | |
| Med skivbroms fram | +1400 | |
| Med skivbroms och navdynamo fram | +1600 |
Teknisk specifikation Pilen GT
GT specifikation | Information |
|---|---|
| Uppdaterad 2024-07-17 Magnus | |
| Färger dam och herr | Pilen GT finns i färgerna: Svart RAL 9005, Grön RAL 6005, Durablå och Duragrön. Plusfärger för Pilen GT är Blå RAL 5001, Röd RAL 3004, Ljusgrön RAL 6021, Ljusblå RAL 5024 och creme RAL 1015. Plusfärger kan innebära längre leveranstid. Med silvermärke Pilen. |
| Ram | Höjd: 57,5 cm. Krom-molybden SAE 4130 i alla ramrör för bästa elasticitet, komfort och hållbarhet. Pulverlackerad. |
| Gaffel | Krom-molybdenstål SAE 4130 med gjuten gaffelkrona och mässingslödda gaffelben. |
| Skärmar | Rostfritt stål. Välj mellan svarta pulverlackerade eller mattpolerade stålrena. |
| Vevhus | Vevlagret är ett underhållsfritt kassettvevlager av märket Tange modell LN-7922 med kapslade kvalitetskullager, smidd axel i krom-molybdenstål och aluminiumhylsa. Vevarmar och kedjehjul av aluminium. |
| Kedja och kedjeskydd | 104 länkar rostskyddsbehandlad kedja. Roterande kedjeskydd. |
| Utväxling | 44:20 |
| Baknav alt. 1 | Shimano CB-E110 oväxlat. Fotbroms. |
| Baknav alt. 2 | Shimano Nexus Inter 3. Fotbroms. Vridväxelreglage på styret. |
| Baknav alt. 3 | Shimano Nexus Inter 7. Fotbroms. Vridväxelreglage på styret.Fram och bakbroms på styret. |
| Baknav alt. 4 | Shimano Nexus Inter 7 med rullbroms. Vridväxelreglage på styret. |
| Framnav alt 1 | Shimano DH-2R35-E-med kapslad utanpåliggande rullbroms och navgenerator. |
| Framnav alt 2 | Shimano Nexus HB-IM40 och roller brake BR-IM45. Utan navgenerator. |
| Växel | Vridväxelreglage inbyggt i höger styrhandtag. |
| Däck | Schwalbe Marathon Racer 35-622 Performance line med punkteringsskydd. Max tryck 6,5 bar. |
| Fälgar | 28 tums dubbelbottnad tysk (19-622) aluminiumfälg med vinkelstansade ekerhål och ekeröljetter. Välj mellan silver- eller svartanodiserade. |
| Ekrar | Rostfritt stål 2 mm med förstärkta ekerböjar i bakhjulet. |
| Pakethållare | Smäcker men stark trådpakethållare i aluminium. Bredd 145 mm. |
| Lås | Godkänt lås ABUS SHIELD 565 med säkerhetsklass 9 |
| Broms | Fotbroms bak (undantag baknav 4 och 5)). Handbroms fram. |
| Styre | Humpert roadster |
| Sadel, alternativ | Brooks B17 i läder, Black, Brown eller Honey. Brooks B67 läder i Black, Brown eller Honey. Italienska sadeln Selle Montegrappa Canard i konstläder i Black, Brown eller Honey. Italienska sadeln Selle Montegrappa Future i konstläder i Black, Brown eller Honey. |
| Framlyse alt 1 | Spanninga Brio led 15 Lux, för modeller med navgenerator |
| Framlyse alt 2 | Axa Basta Microscope. Batterilyse. |
| Baklyse | Baklyse Vena från Spanninga med on/off funktion. |
| Reflexer | Reflexsidor i däcken samt i fram och baklyse. |
| Handtag | Herrmans Zeglo kork och Kraton (syntetisk gummimaterial). |
| Klocka | Ringklocka Büchel i aluminum. |
| Stöldskydd | Stöldskyddsregistrering S-reg. |
Vikter
Pilen GT modell | Sadel Brooks B17 | Sadel Canard |
|---|---|---|
| skärmar, lås, lyse, pakethållare | ||
| GT 1C med Rullbroms | 14,0 | 13,8 |
| GT 1C med Navdynamo | 14,7 | 14,5 |
| Gt 3C med Rullbroms | 14,4 | 14,2 |
| Gt 3C med Navdynamo | 15,1 | 14,9 |
| GT 7C med Rullbroms | 15,3 | 15,1 |
| GT 7C med Navdynamo | 16,0 | 15,8 |
| GT 7RB med Rullbroms | 15,6 | 15,4 |
| GT 7RB med Navdynamo | 16,3 | 16,1 |
| GT 8RB med Rullbroms | 16,1 | 15,9 |
| GT 8RB med Navdynamo | 16,8 | 16,6 |
| C=Fotbroms | ||
| RB=Rullbroms bak | ||
| martin 20240613 | ||
| Alla vikter utan |
Vilka tillval finns för Pilen GT Special?
Vackra och nyttiga tillval som gör din Pilen GT anpassad efter dina önskemål. Priserna visas längre ned på sidan.
Prislista tillval Pilen GT
Tillval Pilen GT | Märke | |
|---|---|---|
| Uppdaterad 2024-08-28 Magnus | ||
| Baklyse Secula för navdynamo | 500 | Busch & Müller |
| Dubbelstöd Moove Double | 300 | Atran Velo |
| Däck Kojak 35-622 | 150 | Schwalbe Tires |
| Däck Little Big Ben Creme-Reflex 40-622 | 0 | Schwalbe Tires |
| Däck Little Big Ben Brown-Reflex 40-622 | 0 | Schwalbe Tires |
| Däck G-One Allround Tubeless 40-622 | 320 | Schwalbe Tires |
| Framlyse Lumotec Classic on/off | 400 | Busch & Müller |
| Framlyse Lumotec Lyt Senso Plus | 500 | Busch & Müller |
| Framlyse Lumotec Briq-S T 60 lux LED | 500 | Busch & Müller |
| Framlyse IQ-XS 80 lux LED | 795 | Busch & Müller |
| Framlyse IQ-X 100 lux LED | 1395 | Busch & Müller |
| Frampakethållare Atran Cargo Jumbo lackerad | 990 | Atran Velo |
| Frampakethållare Atran Cargo Jumbo svart | 600 | Atran Velo |
| Frampakethållare Atran Cargo Jumbo Basket lackerad med träbotten | 990 | Atran Velo |
| Frampakethållare Atran Cargo Jumbo Basket svart med träbotten | 600 | Atran Velo |
| Frampakethållare Nitto M18 | 1800 | Nitto Japan |
| Stänkskärmar färganpassade | 200 | Pilen |
| Handtag Primergo kork | 100 | Herrmans Oy |
| Kedjeskydd täckande i ramfärgen | 300 | Pilen |
| Kejdeskydd täckande i mattputsat rostfritt stål | 300 | Pilen |
| Korg Brooks Hoxton | 1800 | Brooks |
| Korg brun plastrotting | 900 | Pilen |
| Korg svart | 500 | Pilen |
| Korg Småland | 650 | Pilen |
| Korg Småland, lackerad | 800 | Pilen |
| Lås ABUS 5650 | 200 | ABUS |
| Ringklocka E-ne aluminium | 290 | Crane Bells |
| Ringklocka E-ne mattsvart | 350 | Crane Bells |
| Ringklocka E-ne koppar | 350 | Crane Bells |
| Ringklocka E-ne mässing | 350 | Crane Bells |
| Ringklocka Riten aluminium | 240 | Crane Bells |
| Ringklocka Riten koppar | 350 | Crane Bells |
| Ringklocka Riten mässing | 300 | Crane Bells |
| Ringklocka Suzu aluminium | 220 | Crane Bells |
| Ringklocka Suzu koppar | 250 | Crane Bells |
| Ringklocka Suzu mässing | 250 | Crane Bells |
| Pedaler Marwi SP-2150. Pedalkorg ett stycke CNC-fräst aluminum. Axel av krommolybdenstål. Kvalitetskullager. Storlek: 99 x 72 mm. Vikt: 314 gram/par. | 320 | Marwi |
| Sadelväska Pilen & Nyström svart, brun, honey | 1100 | Nyström Stockholm |
| Sadel B17, svart, brun, honey | 1100 | Brooks |
| Skivbroms hydraulisk fram | 1400 | Shimano |
| Skivbroms hydraulisk fram m. navdynamo | 1600 | Shimano |
| Styre Nitto Albatross | 900 | Nitto Japan |
| Styrstam Nitto Technomic | 700 | Nitto Japan |
Med cykelbarnstol och cykelväskor
Thule's child bike seats
Thule states that their frame-mounted child bike seats fit bikes with a carrier width of up to 150 mm. The Pilen Lyx carrier is 170 mm. If you still want to mount a Thule frame-mounted child bike seat on the Lyx, the Lyx carrier is easy to remove (four screws).
To reduce the risk of bikes with child bike seats and/or bike bags tipping over, we recommend equipping the bike with Atran Moove double stand (optional).
| Model | Lyx | City | GT | GTV | EL1 |
|---|---|---|---|---|---|
| Seat tube diameter | 28.8 mm | 28.8 mm | 28.8 mm | 28.8 mm | 35 mm |
| Stem diameter | 22.2 mm | 22.2 mm | 22.2 mm | 22.2 mm | 25.4 mm |
| Carrier width | 170 mm | 145 mm | 145 mm | 145 mm | 160 mm |
| Model | Description | Fits | Link |
|---|---|---|---|
| Thule Yepp 2 Mini. Child bike seat. | Front-mounted child bike seat. Attaches to handlebar stem with diameter 22-28 mm. Max width of carrier 150 mm. Article number: 12021101. | Lyx City GT GTV EL1 | Thule Yepp 2 Mini |
| Thule Yepp Nexxt 2 Mini. Child bike seat. | Front-mounted child bike seat. Attaches to handlebar stem with diameter 22-28 mm. Max width of carrier 150 mm. Article number: 12080121. | Lyx City GT GTV EL1 | Thule Yepp Nexxt 2 Mini |
| Thule Yepp 2 Maxi. Child bike seat. | Rack-mounted child bike seat. Attaches to carriers 110 - 175 mm wide. Article number: 12021201. | Lyx City GT GTV EL1 | Thule Yepp 2 Maxi |
| Thule Yepp 2 Maxi. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 12021301. | Lyx* City GT GTV | Thule Yepp 2 Maxi |
| Thule Yepp 2 Maxi MIK HD. Child bike seat. | Requires special MIK HD mount. Article number: 12021401. | No. Requires special Thule carrier. | Thule Yepp 2 Maxi MIK HD |
| Thule RideAlong 2. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 100207. | Lyx* City GT GTV | Thule RideAlong 2 |
| Thule RideAlong. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 100106. | Lyx* City GT GTV | Thule RideAlong |
| Thule RideAlong Lite. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 100109. | Lyx* City GT GTV | Thule RideAlong Lite |
| Thule Yepp 2 Maxi Frame Mounted. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 12021301. | Lyx* City GT GTV | Thule Yepp 2 Maxi Frame Mounted |
| Thule Yepp Nexxt 2 Maxi Frame Mounted. Child bike seat. | Frame-mounted child bike seat. The mount attaches to the frame's seat tube with a diameter of 28-40 mm. Max width of carrier 150 mm. Article number: 12080231. | Lyx* City GT GTV | Thule Yepp Nexxt 2 Maxi Frame Mounted |
| Thule Yepp 2 Maxi Rack Mounted. Child bike seat. | Rack-mounted child bike seat. Attaches to carriers 110 - 175 mm wide. Article number: 12021201. | Lyx City GT GTV EL1 | Thule Yepp 2 Maxi Rack Mounted |
| Thule Yepp Nexxt Maxi Rack Mounted. Child bike seat. | Rack-mounted child bike seat. Attaches to carriers 110 - 175 mm wide. Article number: 12080251. | Lyx City GT GTV EL1 | Thule Yepp Nexxt Maxi Rack Mounted |
| Thule Shield. Bicycle bag. | A compact waterproof bag to keep essentials close at hand when commuting or going on bike adventures. Article number: 100056. | Lyx City GT GTV EL1 | Thule Shield |
| Shield 1-pack 17L. Bicycle bag. | Thule Shield bicycle bag 17L is an urban bicycle bag perfect for bike commuters. Article number: 3204208. | Lyx City GT GTV EL1 | Shield 1-pack 17L |
| Shield 1-pack 22L. Bicycle bag. | Thule Shield bicycle bag 22L is an urban bicycle bag perfect for bike commuters. Article number: 3204916. | Lyx City GT GTV EL1 | Shield 1-pack 22L |
| Shield 2-pack 25L. Bicycle bag. | Thule Shield bicycle bag 25L is an urban bicycle bag perfect for bike commuters. Article number: 3204209. | Lyx City GT GTV EL1 | Shield 2-pack 25L |
| Shield 2-pack 13L. Bicycle bag. | Thule Shield bicycle bag 13L is an urban bicycle bag perfect for bike commuters. Article number: 3204205. | Lyx City GT GTV EL1 | Shield 2-pack 13L |
| Thule Tour Rack. Bicycle bag. | Thule Tour carrier is a patented carrier that can be mounted both front and rear on most bikes – from full-suspension mountain bikes to road bikes. Article number: 100090. | Lyx City GT GTV EL1 | Thule Tour Rack |
| Thule Pack 'n Pedal. Bicycle bag. | Accessory for Thule Pack 'n Pedal Tour Rack that allows you to transport almost all types of bicycle bags and balance heavy loads. Article number: 100017. | Lyx City GT GTV EL1 | Thule Pack 'n Pedal |
| Thule Quick Release Bracket. Quick release for child bike seat. | Compatible with Thule RideAlong 2, Thule RideAlong, Thule RideAlong Lite 2, Thule RideAlong Lite, Thule Yepp 2 Maxi Frame Mounted, Thule Yepp Nexxt 2 Maxi Frame Mounted, Thule Yepp Nexxt Maxi Frame Mounted. Article number: 100203. | Lyx City GT GTV EL1 | Thule Quick Release Bracket |
Panniers
- Increased load capacity: Panniers provide extra space for carrying items, which is ideal for transporting groceries, work materials, or camping gear.
- Balance and stability: Compared to carrying a backpack, panniers distribute the weight more evenly and reduce the load on the cyclist, leading to a more balanced and stable ride.
- Weather protection: Many panniers are made from weather-resistant materials that protect contents from rain, dust, and other weather conditions.
- Safety and visibility: Panniers can be equipped with reflective materials or lights to increase visibility in low-light conditions, enhancing safety.
- Easy accessibility: Panniers are often designed to be easily accessible even while riding, so you can quickly reach water bottles, maps, or snacks without needing to stop.
- Variety and adaptability: There are different types of panniers for various needs, including rear rack panniers, saddle panniers, and handlebar panniers, making it easy to customize for the type of load you need to carry.
- Comfort: Using panniers instead of carrying a heavy backpack can reduce the risk of back and shoulder pain, especially on longer rides or trips.
- Efficiency: With panniers, you can use your bike for errands or trips where you might otherwise choose a car, saving fuel and reducing traffic.
- Promotes an active lifestyle: By facilitating the transport of equipment and supplies, panniers encourage more bike rides, both in urban environments and in nature.
Links to Thule product pages
Child bike seats and panniers are aftermarket products that people often choose based on personal preference, taste, and budget, and install on their bike either themselves or with the help of a bike dealer. Pilen does not mount child bike seats or panniers and has no business relationships with manufacturers of these products.
Leveranstid
Modell | Leveranstid |
|---|---|
| Lyx dam | Normal |
| Lyx herr | Normal |
| GT dam | Normal |
| GT herr | Normal |
| GTV dam | Normal |
| GTV herr | Normal |
| EL1 | Normal |
Ändringshistorik Pilens modeller
Changes to Bicycle Specifications in Photos
Pilen’s bicycles evolve over time. These improvements in form and function aim to save weight or provide even better rust protection. Components can also be phased out from the market and need to be replaced. The specifications of the bicycles shown under each model are updated immediately and are current. However, photographs of the bicycles may lag behind and not show the changes, as photography, photo editing, and updating our web pages are time-consuming. The table below shows a history of changes to the bicycle models
| Date | Unit | Affects Models | Unit |
|---|---|---|---|
| 2023-08-01 | Chain Guard Pilen Model 3. Manufactured in-house from stainless steel. Recognizable by the three punched holes. | Lyx EL1 | Show |
| 2023-07-01 | Handlebars for Lyx and City switched to stainless steel handlebars from Swedish Lago. Stainless steel. Improved rust protection. | Lyx | |
| 2022-08-01 | Brooks B66 replaced by Brooks B67. Saves 200 grams in weight. | Lyx EL1 | |
| 2022-08-01 | Stainless steel seat post without top clamp replaced with Ergotech aluminium seat post with top clamp to save weight. | Lyx | |
| 2022-08-01 | Stand made of galvanized steel replaced by Atran Move in aluminium. Higher quality, better rust protection, and weight-saving. | Lyx | |
| 2022-08-01 | Carrier's backplate with Pilen logo on Lyx changed from high-ten steel to stainless steel. Improved rust protection. | Lyx | |
| 2022-08-01 | Carrier for GT and GTV changed from stainless steel to aluminium to save weight. | GT GTV | |
| 2022-07-01 | EL1 seat tube shortened for a better lowest saddle height. | EL1 | |
| 2019-07-01 | Mudguards switched from galvanized steel to stainless steel mudguards from Herrmans. Allows for matte polished, bare steel mudguards that are very stylish. | Lyx GT GTV EL1 |
Skräddarsy en Pilen GT special herrcykel
Din egen GT Special
En bra cykel är något man vill kunna trivas med och tycka om, känna sig stolt över och ha en god relation till – estetiskt, tekniskt och ekonomiskt. Pilen GT Special är en Pilen GT där du valt färger och utvalda komponenter efter eget tycke och smak. Helfärgad cykel och korg är populära val. Du kan till exempel välja:
- Helfärgad med stänkskärmar i ramfärgen (viss leveranstid) +200 kr.
- Plusfärger (längre leveranstid) som medger att Pilen GT kan lackeras i alla Pilens standardfärger.
- Nav med skivbroms och navdynamo som driver framlyset.
- Nav med skivbroms och batterilyse.
- Pilen Lyx kedjeskydd lackerat i ramfärgen.
- Pilen Lyx kedjeskydd mattputsat rostfritt stål.
- Sadel i äkta läder Brooks B17.
- Exklusiva klockor från Japanska Crane Bells.
- Olika korgar och frampakethållare.
- Korgar och frampakethållare lackerade i ramfärgen.
- Dubbelstöd i aluminium Atran Moove Double.
- Däck slicks Schwalbe Kojak.
- Olika framlysen och baklysen.
- Herrmans handtag Primergo med kork.
- Olika styrstammar.
- Lås Abus med anslutning för Abus låsvajer/låskedja.
- Lättviktspedaler Marwi SP-2150.
- Pilen & Nyström sadelväska.
GT Special måste du beställa via din Pilen-återförsäljare och viss leveranstid kan förekomma. Vi tar inte emot beställningar direkt till fabriken. Exakt prisuppgift får du av din handlare. Du kan räkna på ett pris i vår prisberäkningsverkstad.
Korg och kedjeskydd
Pilen GT kan utrustas med tillvalen korg eller pakethållare fram. Den kan också utrustas med tillvalet täckande kedjeskydd.
Fyra val av framnav, belysning och bromsteknik
Pilen GT har fyra val av framnav. Cyklar du sällan eller aldrig i mörker så är navdynamo kanske överflödigt. Du kan även få hydrauliska skivbromsar på din Pilen GT av samma typ som Pilen GTV är utrustad med.
- Shimano framnav med navdynamorullbroms, navdynamo och starkt lysande framlyse med LED-lampa.
- Shimano framnav med rullbroms och ett litet smidigt batterilyse på styret.
- Shimano framnav med navdynamo hydraulisk skivbroms, navdynamo och starkt lysande framlyse med LED-lampa.
- Shimano hydraulisk skivbroms och ett litet smidigt batterilyse på styret.
Varför en Pilencykel
The first and foremost argument is undoubtedly that you get a lot of bike for your money. Pilen has only a few employees, and everyone in the company can build a bicycle with meticulous attention to quality in the smallest detail. The bicycles are crafted on a lean production line that the Pilen team built entirely themselves—a line that is constantly being improved. You can choose the equipment level on all models. Whether you want a bike with just the bare necessities or want to spend a little extra, you have the opportunity to create your own personal bike. Compare the Pilen’s riding experience and equipment level with other bicycle brands. The bike feels more refined and lively.
Hur kommer cykeln att se ut?
För att underlätta för kreativa cykelälskare har vi en designmodul där du kan komponera och få en uppfattning om en Pilen GT utseende och utrustningen och ge din cykel en personlig prägel.
